2022 High quality Rtk Gnss Gps - Surveyor Equipment Surveying Instruments Hi-Target V98 Surveying instrument GPS RTK – Haodi
2022 High quality Rtk Gnss Gps - Surveyor Equipment Surveying Instruments Hi-Target V98 Surveying instrument GPS RTK – Haodi Detail:
PERFORMANCE SPECIFICATIONS
model | V98 | |
Gnss | Channel | 660 |
Satellite Tracked
|
GPS
L1C/A,L2E,L2C,L5 |
|
GLONASS
L1C/A, L1R L2C/A, L3 CDMA2 |
||
GELILEO
E1, E5A, E5B, ESAItBOC, E62 |
||
BEIDOUBl, B2, B3 | ||
SBAS :
L1 C/A,L5(QZSS,WAAS,MSAS,GAGAN) |
POSITIONING PERFORMANCE | |
High-Precision Static | |
Horizon: | 2.5 mm + 0.1 ppm RMS |
Vertical: | 3.5 mm + 0.4 ppm RMS |
Static and Fast Static | |
Horizon: | 2.5 mm + 0.5 ppm RMS |
Vertical: | 5 mm + 0.5 ppm RMS |
RTK Accuracy | |
Horizon: | 8mm+1ppm RMS |
Vertical: | 15mm+1ppm RMS |
Network RTK | |
Horizon: | 8mm+0.5ppm RMS |
Vertical: | 15mm+O.5ppm RMS |
Initialization time | |
Typically 2-10s | |
Initialization reliability | |
Typically > 99.9% | |
Internal Battery | |
Battery | 7.4V 6800mAh lithium-ion rechargeable and removable battery.RTK rover(UHF/Cellular) for 10 hours.Power indicator embedded. |
Working time | Quick charge within 3.5 hours. |
Communication | |
Internal UHF Transceiver Radio | |
Frequency | 403-473MHz |
Transmitting power | 1 ~4W Hi-Target Advanced Radio Supports protocols: HI-TARGET, TRIMTALK450S, TRIMMARK III, SATEL-3AS, TRANSEOT |
Working Range | Typically 3~5km, optimal 5~8km |
Physical | |
Dimensions | 158mm x 98mm (6.22inch x 3.86inch) |
Weight | lighter than 1.3kg (2.65lb) within internal battery |
Operation temperature | -40°C~+75°C (-40°F~ + 167°F) |
Storage temperature | -50°C~+85°C (-58°F~ + 185°F) |
Temperature control | Auto-adjust the working power to maintain the temperature |
Interface | |
4.0/2.1 + EDR, 2.4 GHz. USB 20 port with OTG function. 1 SMA antenna connector. 1 DC power input(S-pin). 1 SIM card slot Near FieldCommunication(NFC) | |
I/O Interface | |
Control Panel | |
Physical button | 1 |
Touchscreen | Support glove mode and wet-finger mode |
Environment | |
Dustproof&Waterproof | IP67 dustproof, protected from temporary immersion to depth of 1 m (3.28ft) |
Humidity | 100% condensing |

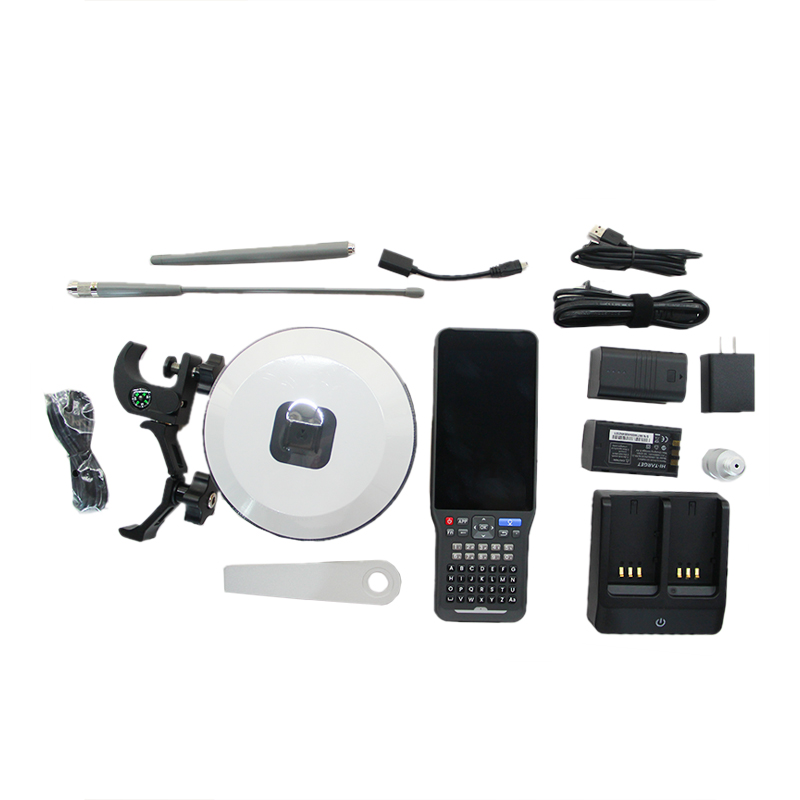

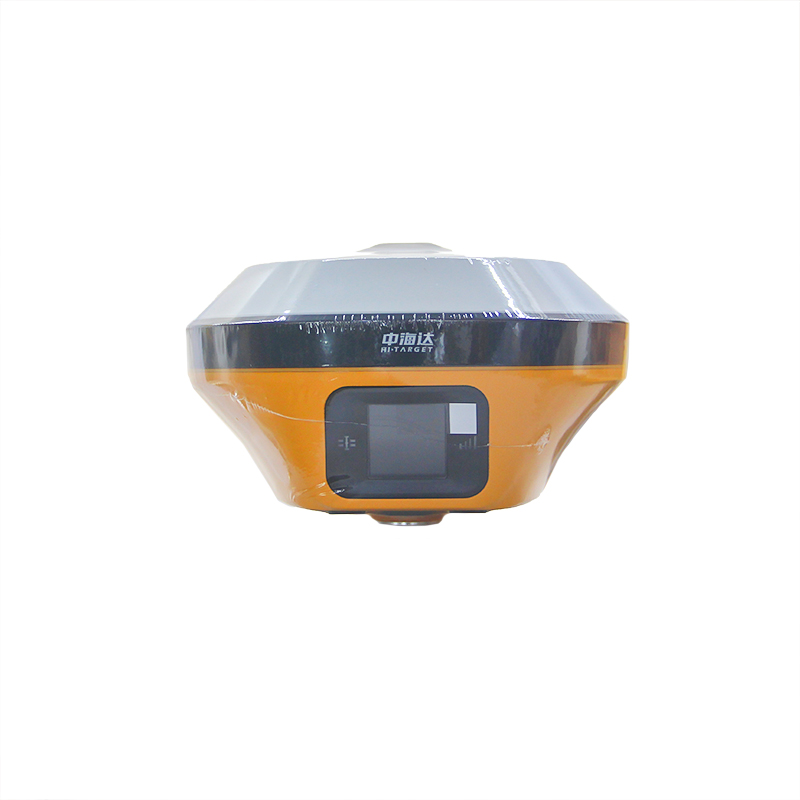

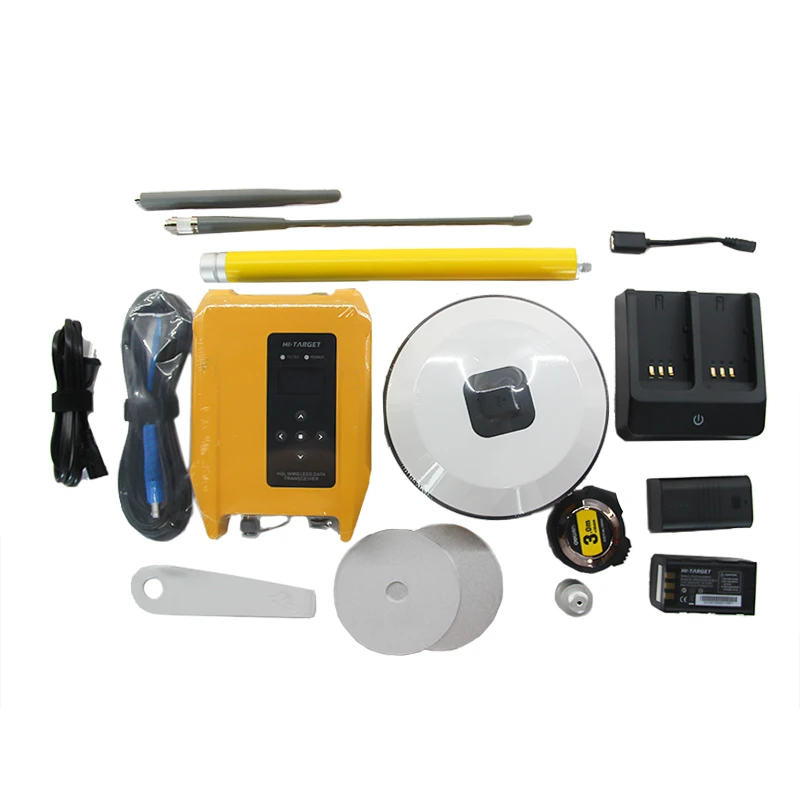

Product detail pictures:
