Base and Rover Station Stonex S3+ GNSS GPS Price RTK System 800 Channels

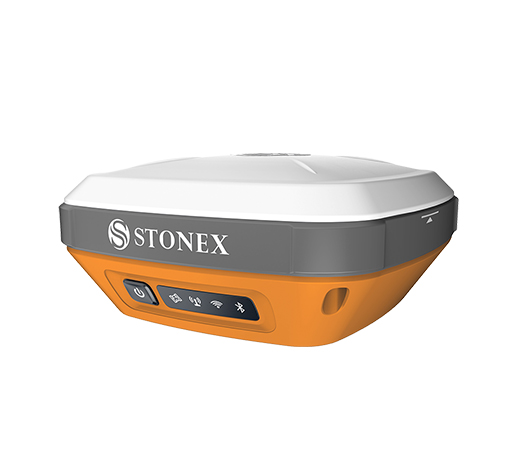

Stonex S3+ GPS
Provide a high cost-effective RTK for engineering users, and the fully upgraded S3 + has stronger performance: magnesium alloy
fuselage material, lightweight and durable; carrying intelligent system, easy to operate; built-in star chain to continue to
improve efficiency; S3 + takes full account of the diversity of user projects, environment and communication, and continuously
creates a burst RTK.
fuselage material, lightweight and durable; carrying intelligent system, easy to operate; built-in star chain to continue to
improve efficiency; S3 + takes full account of the diversity of user projects, environment and communication, and continuously
creates a burst RTK.
Feature:
International First-class High Precision Board Card
394-555 channels, which can track 14 signal systems at the same time, fully support four global satellite navigation systems: BDS
(B1/B2/B3), GPS (L1/L2/L5), GLONASS (G1C/G1 P/G2C/G2P/G3), Galileo (E1/E5a/E5b), IRNSS (L5), QZSS and SBAS wide area differential
enhancement system.

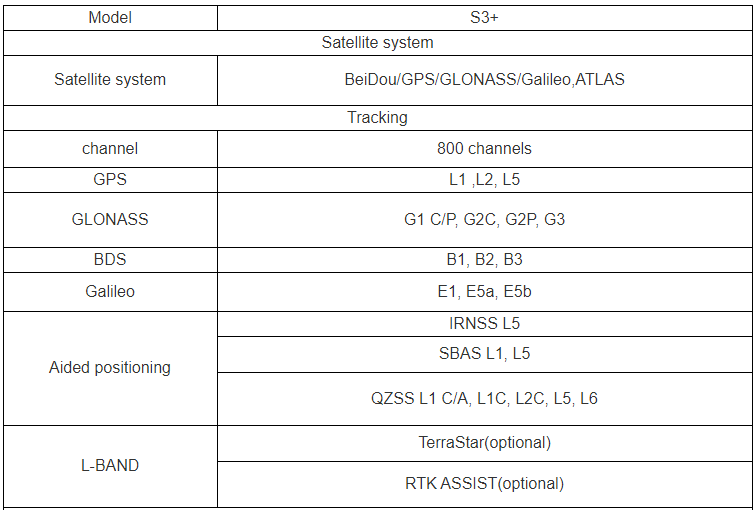

Model | S3+ |
Satellite system | |
Satellite system | BeiDou/GPS/GLONASS/Galileo,ATLAS |
Tracking | |
channel | 800channels |
GPS | L1 ,L2, L5 |
GLONASS | G1 C/P, G2C, G2P, G3 |
BDS | B1, B2, B3 |
Galileo | E1, E5a, E5b |
Aided positioning | IRNSS L5 |
SBAS L1, L5 | |
QZSS L1 C/A, L1C, L2C, L5, L6 | |
L-BAND | TerraStar(optional) |
RTK ASSIST(optional) | |
Performace Index | |
Static H Accuracy | ±(2.5mm+1ppm)RMS |
Static V Accuracy | ±(5mm+1ppm)RMS |
RTK measure H Accuracy | ±(8mm+1ppm)RMS |
RTK measure V Accuracy | ±(15mm+1ppm)RMS |
ATLASposition* | H:5cm |
V:10cm | |
Initialization time | <10s |
Initialization reliability | >99.99% |
Data Output Rate | 1Hz-20Hz |
Static Storage and Data Output | |
Storage format | Dat/Rinex |
Storage memory | Standard 16G |
Storage way | Two formats of data can be stored at the same time |
Download way | Suooprt USBdownloada &Web download |
Export format | NMEA0183,PJKPlanar coordinates, binary codes |
Export way | /WIFI/RS 232/radio/network |
2.1/4.1 LE dual Modular | |
WiFi | 802.11 b/g/n |
voice | Support voice broadcasting |
Communication protocol | TrimTalk / TrimMask 3;PCC EOT;Geotalk;Hi-target |
Radio | Built-in transceiver:0.5W/1W(can adjust) |
external launch:5W/35W(can adjust) | |
working frequency:410-470MHz | |
I/O port | 1 LEMO data port,USB data download,U disk upgrade function |
1 LEMO port,External Output Input,External power supply | |
1 LEMO power port;1 TNC radio port | |
Difference scheme | RTCM2.X,RTCM3.X,CMR,CMR+,ROX |
GNSS Antenna characteristics | |
GNSSAntenna characteristics | Integrated built-in antenna with zero phase center difference |
environment | |
working temperature | -30ºC~+70ºC |
Storage temperature | -40ºC~+80ºC |
Waterproof and dust-proof | IP67 |
Fall prevention | Resistance to 2 m drop with pole (hard ground with concrete) |
Water proof | Immersion 1 m underwater (30 minutes) |
humidity | 100% condensation resistance |
Physical and power characteristics | |
Using time | >10 hours |
size | 146mm×146mm× 76mm |
weight | 1.2kg |
battery | 7.2V 6800mAh |
key | 1 key |
