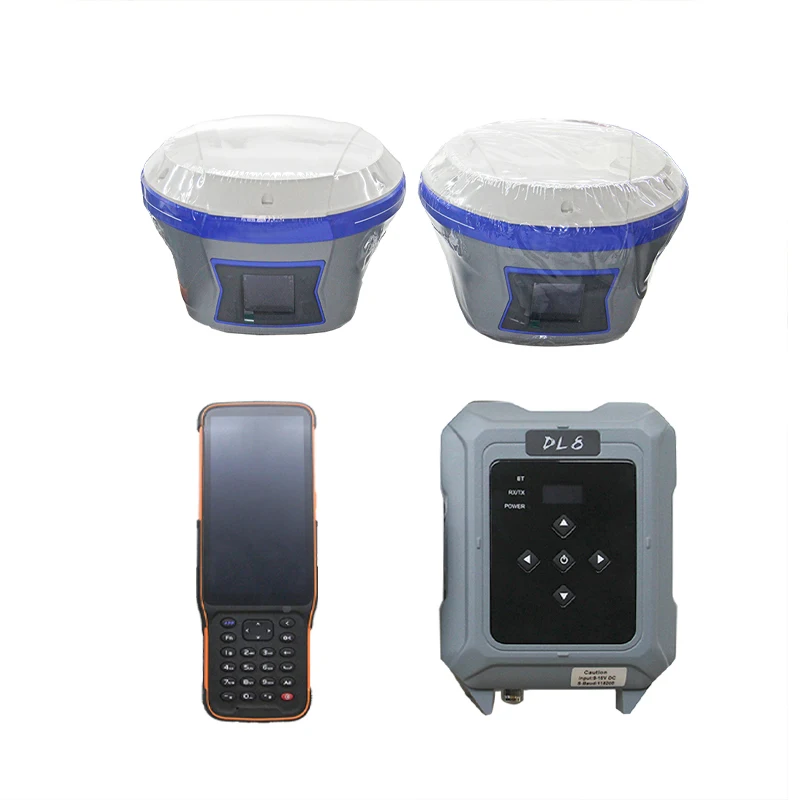

CHC I90/X12 GNSS RTK System Surveying Equipment High Accuracy GPS Receiver

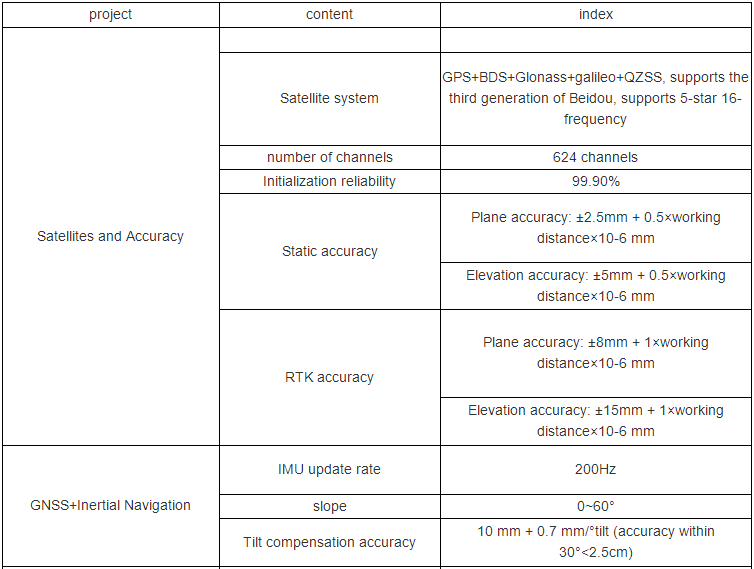

project | content | index |
Satellites and Accuracy | ||
Satellite system | GPS+BDS+Glonass+galileo+QZSS, supports the third generation of Beidou, supports 5-star 16-frequency | |
number of channels | 624 channels | |
Initialization reliability | 99.90% | |
Static accuracy | Plane accuracy: ±2.5mm + 0.5×working distance×10-6 mm | |
Elevation accuracy: ±5mm + 0.5×working distance×10-6 mm | ||
RTK accuracy | Plane accuracy: ±8mm + 1×working distance×10-6 mm | |
Elevation accuracy: ±15mm + 1×working distance×10-6 mm | ||
GNSS+Inertial Navigation | IMU update rate | 200Hz |
slope | 0~60° | |
Tilt compensation accuracy | 10 mm + 0.7 mm/°tilt (accuracy within 30°<2.5cm) | |
User interaction | LCD screen | 1.46 inches, resolution 128×128 |
Indicator light | 1 satellite light + 1 differential data light | |
button | Fn function key + power/confirm key | |
Web page | Support PC/mobile web pages | |
voice | Support voice broadcast | |
Physical properties | size | φ161.4*98.5mm |
Material | magnesium alloy | |
weight | 1.25kg | |
Operating temperature | -45℃~+75℃ | |
storage temperature | -55℃~+85℃ | |
Waterproof and dustproof | IP68 (1 meter immersion under waterproof) | |
Anti-collision | IK08 (with the same mechanical impact force of 2.5 kg steel hammer without damage, resistance to 3 meters drop) | |
Waterproof and breathable membrane | Prevent water vapor from entering the equipment under harsh environments such as sun exposure and sudden heavy rain | |
Electrical performance | Battery | Dual batteries, 6800mAh, 10 hours of battery life on the mobile station |
External power supply | (9~28) V DC | |
storage | 32GB, 10 years of typical data storage | |
Electronic bubble | Support automatic measurement | |
Advanced Features | Cloud service, base station mobile warning, base station battery display, radio interference detection, data forwarding | |
Wireless communication | NFC | Support Wi-Fi, blue tooth touch and flash receiver |
eSIM | No need to insert a card to use CORS, network 1+N, free 3 years service fee | |
The internet | 4G Full Netcom | |
Radio station | Support built-in/external radio | |
Wi-Fi data link | support | |
Data output | Differential data | RTCM2.X, RTCM3.X, CMR, CMR+, CMRx, RTCA |
Location data | NMEA-0183, Trimble GSOF, NMEA2000 | |
Static data | HCN, RINEX 2.11, RINEX 3.02 | |

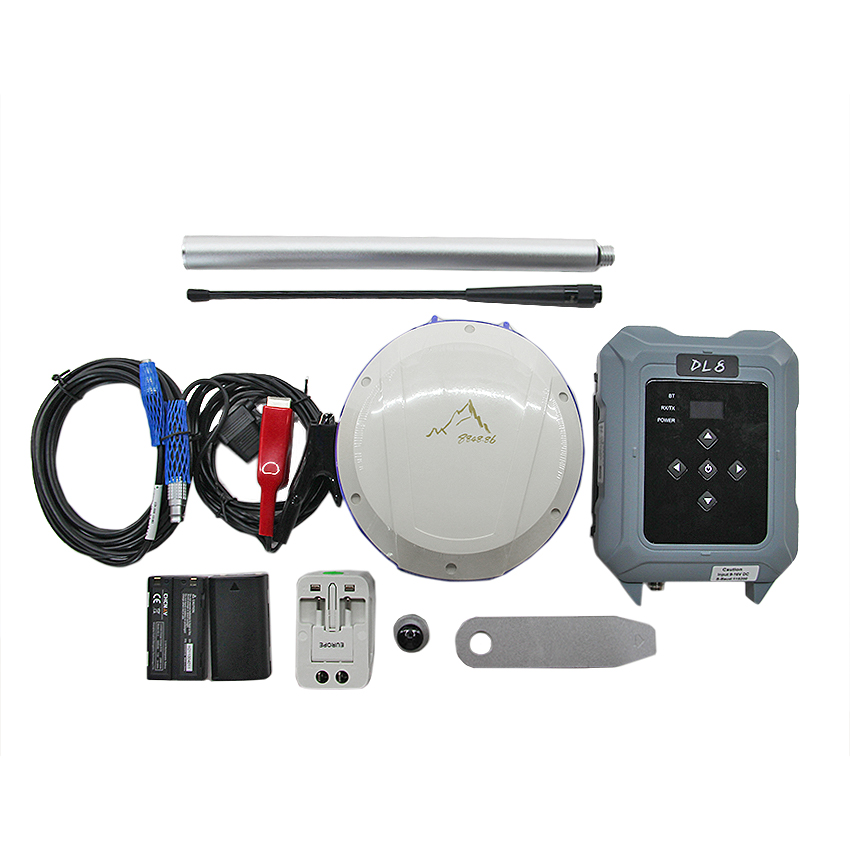

External data link radio | User interaction | LCD screen + 4 arrow keys + 1 power/confirm key |
Protocol | Multi-vendor agreement | |
Transmit power | 0~35W optional | |
Advanced Features | Automatically match the baud rate, data forwarding and relaying | |
Control handbook | model | HCE600 Android Measuring Handbook |
operating system | Android 10 | |
CPU | Eight-core 2.0GHz processor | |
The internet | 4G full Netcom, built-in eSIM free of three years of surveying and mapping traffic | |
LCD screen | 5.5” HD display | |
Battery | 8000mAh, support fast charge | |
Battery life | 14 hours of battery life | |
Waterproof and dustproof | IP68 |
