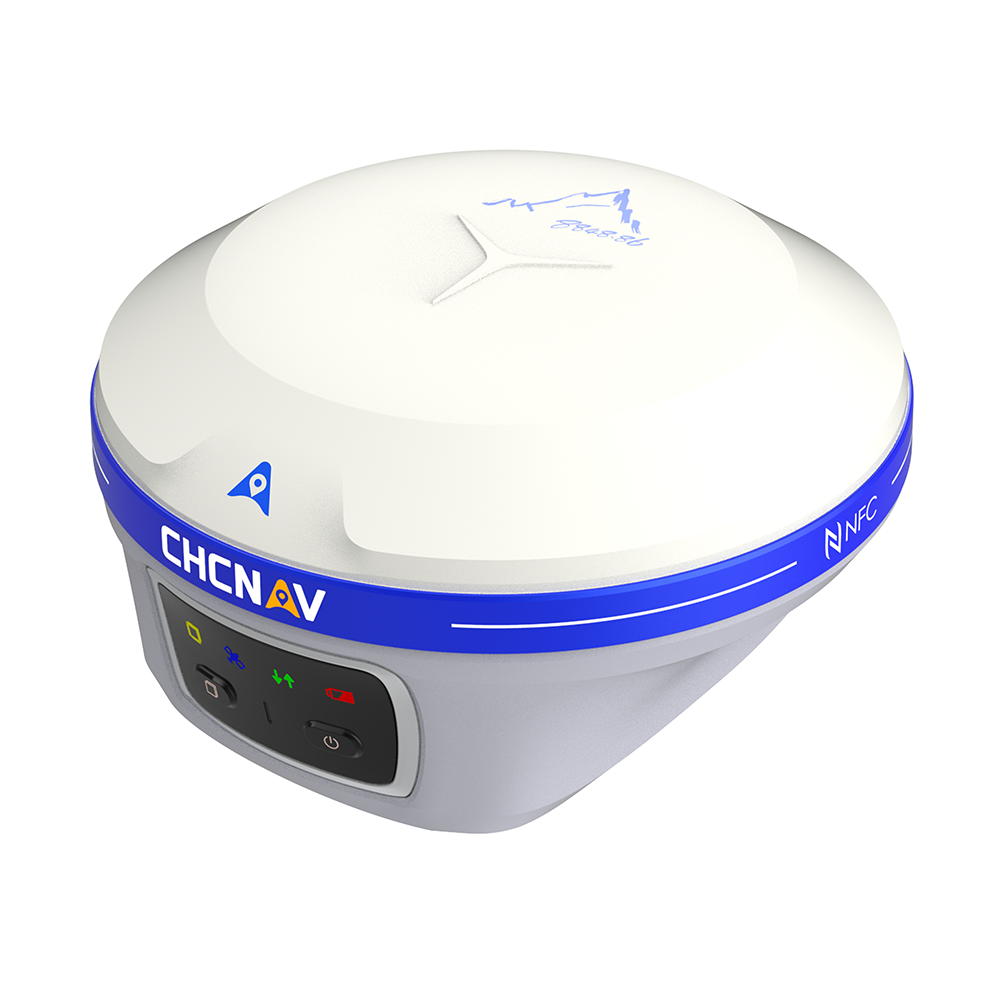

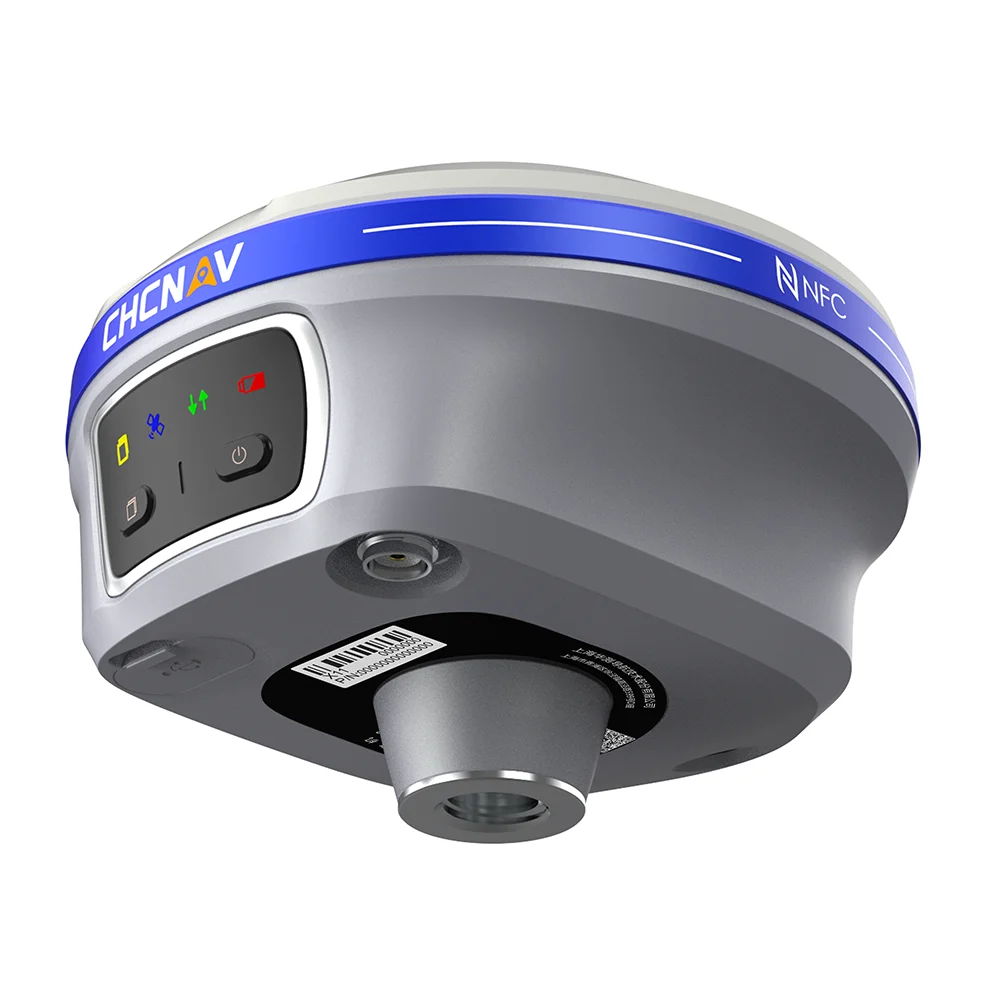

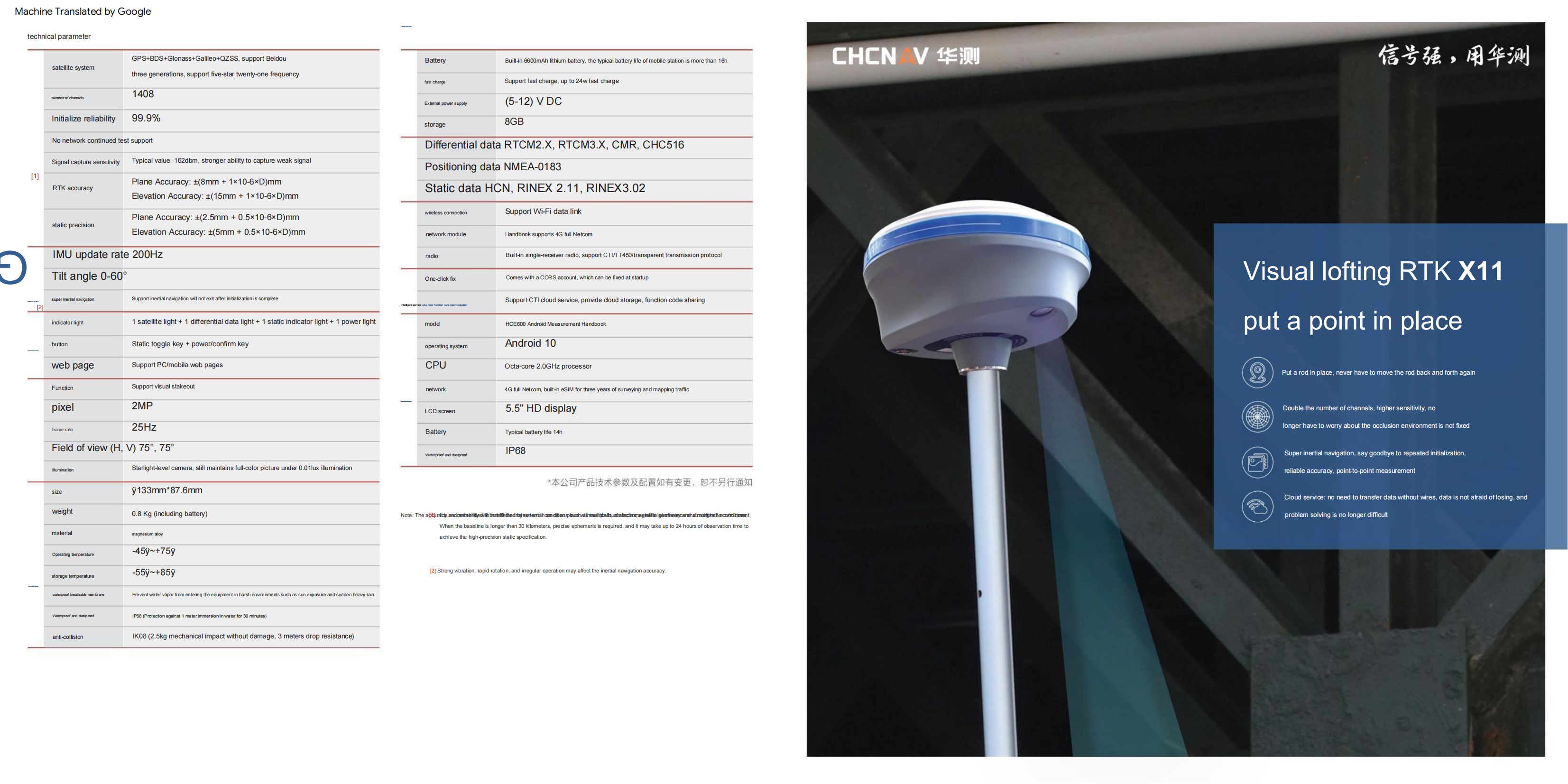

CHC X11 Base And Rover High Accuracy Gnss Receiver Gps Land Measuring Instrument RTK
project | content | index |
Satellites and Accuracy | satellite system | GPS+BDS+Glonass+Galileo+QZSS, support the third generation of Beidou, support five-star twenty-one frequency |
number of channels | 1408 | |
Initialize reliability | 99.90% | |
No network continued test | Support high-precision solution, the base station can publish data such as power information | |
Signal capture sensitivity | Typical value -162dbm, stronger ability to capture weak signal | |
satellite-based differential | Support L-Band function: | |
(optional) | Support Beidou third-generation B2b-ppp service, the accuracy can reach centimeter level | |
Support domestic satellite-based enhanced services (centimeter level) | ||
Support ground-based augmentation system differential services (centimeter level) | ||
Global satellite-based centimeter-level services can be opened | ||
GNSS+Inertial Navigation[2] | IMU update rate | 200Hz |
slope | 0-60 degrees | |
super inertial navigation | Support travel process to complete initialization, and support centering rod calibration | |

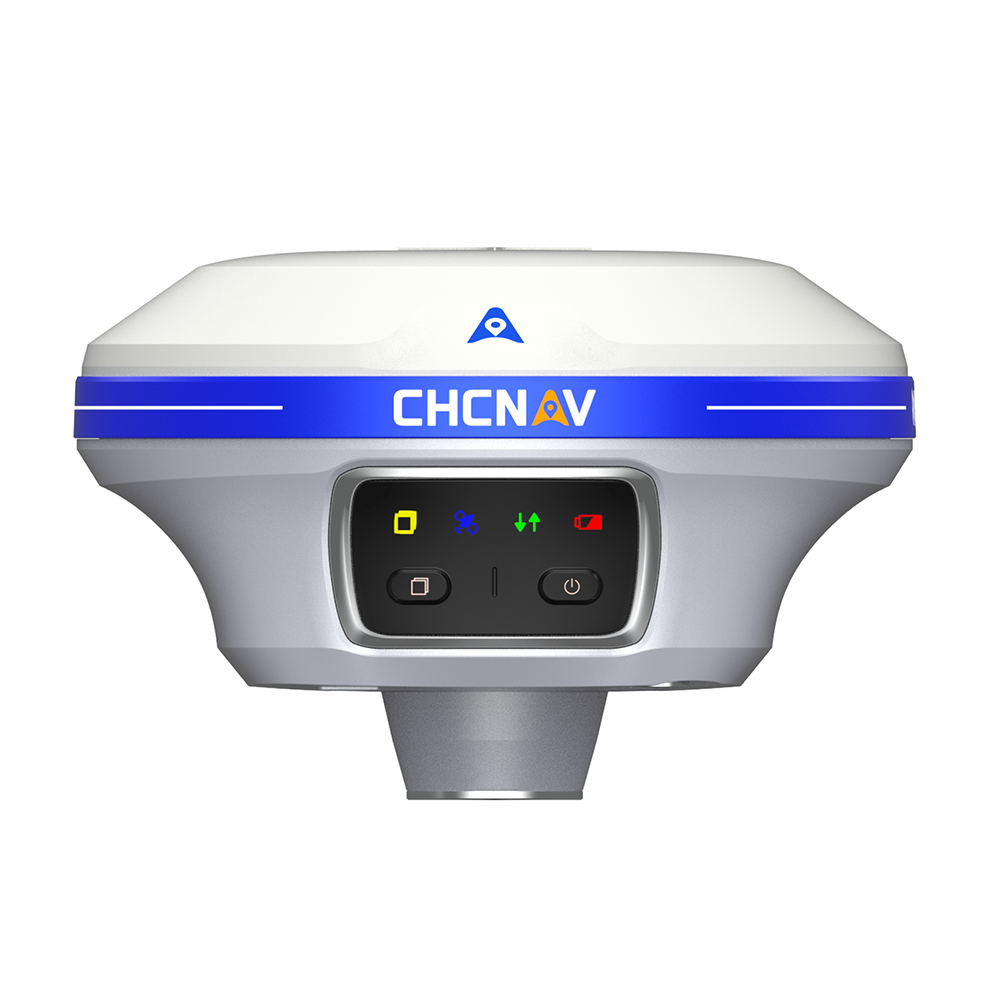

User interaction | indicator light | 1 satellite light + 1 differential data light + 1 static indicator light + 1 power light |
button | Static toggle key + power/confirm key | |
web page | Support PC/mobile web pages | |
Camera | Function | Support visual stakeout |
pixel | 2MP | |
frame rate | 25Hz | |
Field of View (H, V) | 75°, 75° | |
Illumination | Starlight-level camera, still maintains full-color picture under 0.01lux illumination | |
physical properties | size | Φ133mm*87.6mm |
weight | 0.8 Kg (including battery) | |
material | magnesium alloy | |
Operating temperature | -45℃~+75℃ | |
storage temperature | -55℃~+85℃ | |
waterproof breathable membrane | Prevent water vapor from entering the equipment in harsh environments such as sun exposure and sudden heavy rain | |
Waterproof and dustproof | IP68 (Protection against 1 meter immersion in water for 30 minutes) | |
anti-collision | IK08 (with the same mechanical impact force as a 2.5kg steel ram without damage, 3 meters drop resistance) | |
Electrical properties | Battery | Built-in 6600mAh lithium battery |
The typical battery life of the mobile station is more than 16h | ||
fast charge | Support fast charge, up to 24w fast charge | |
Built-in storage | 8GB, can support external expansion 128G, automatic cycle storage, disk | |
After the storage is full, it will be automatically deleted, and the static data of the receiver will be copied with one key. | ||
data output | Differential data | RTCM2.X, RTCM3.X, CMR, CHC516 |
positioning data | NMEA-0183 | |
static data | HCN, RINEX 2.11, RINEX3.02 | |
data communication | wireless connection | Support Wi-Fi data link |
network module | Handbook supports 4G full Netcom | |
radio | Built-in single-receiver radio, support CTI/TT450/transparent transmission protocol | |
Advanced Features | One-click fix | Comes with a CORS account, which can be fixed at startup |
Smart service | Support CTI cloud service, provide cloud storage, function code sharing | |

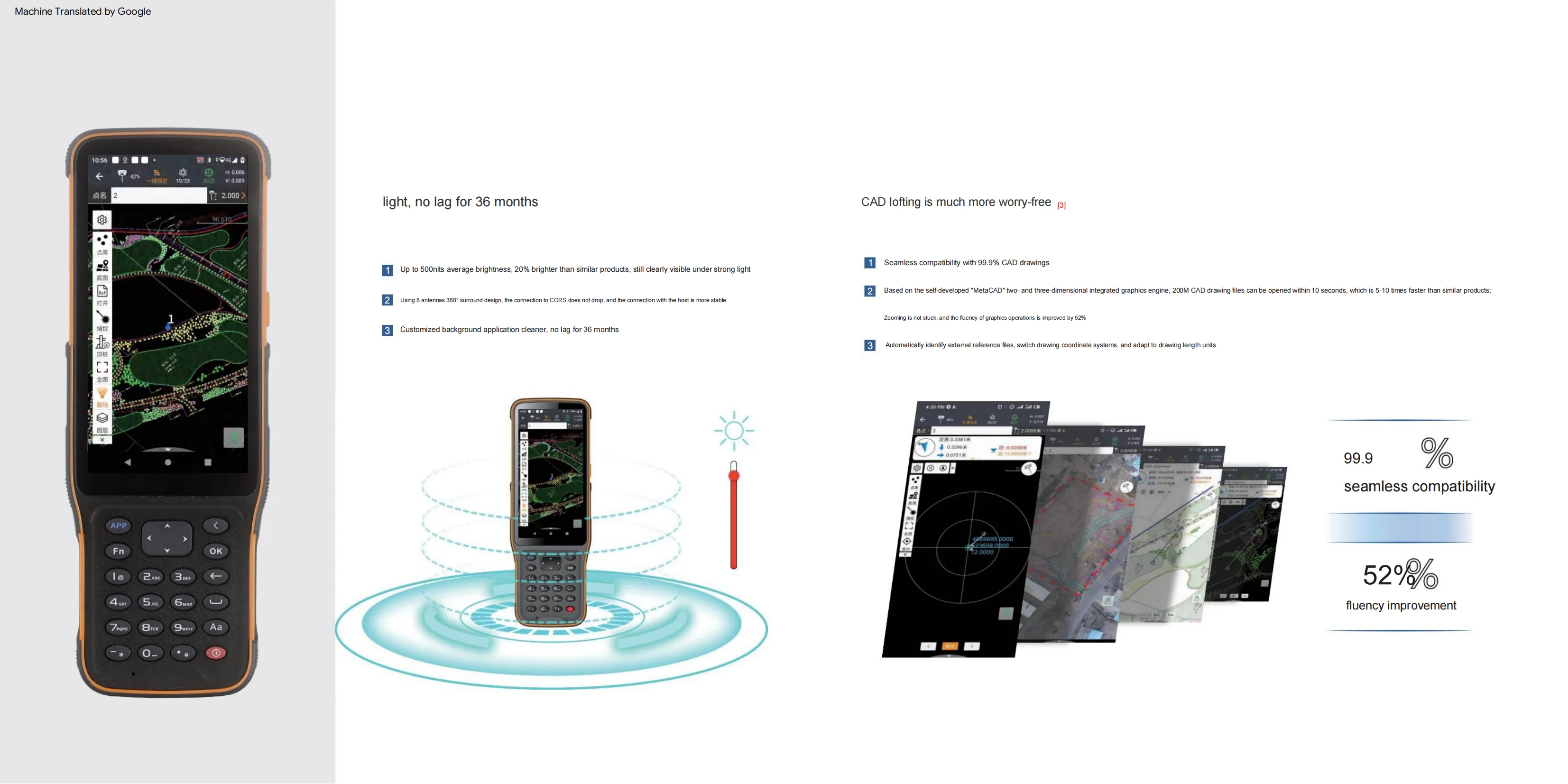

control handbook | model | HCE600 Android Measurement Handbook |
operating system | Android 10 | |
CPU | Octa-core 2.0GHz processor | |
network | 4G full Netcom, built-in eSIM for three years of surveying and mapping traffic | |
Operating temperature | -30℃-+60℃ | |
Storage temperature | -40℃-+80℃ | |
Waterproof and dustproof | IP68
|
