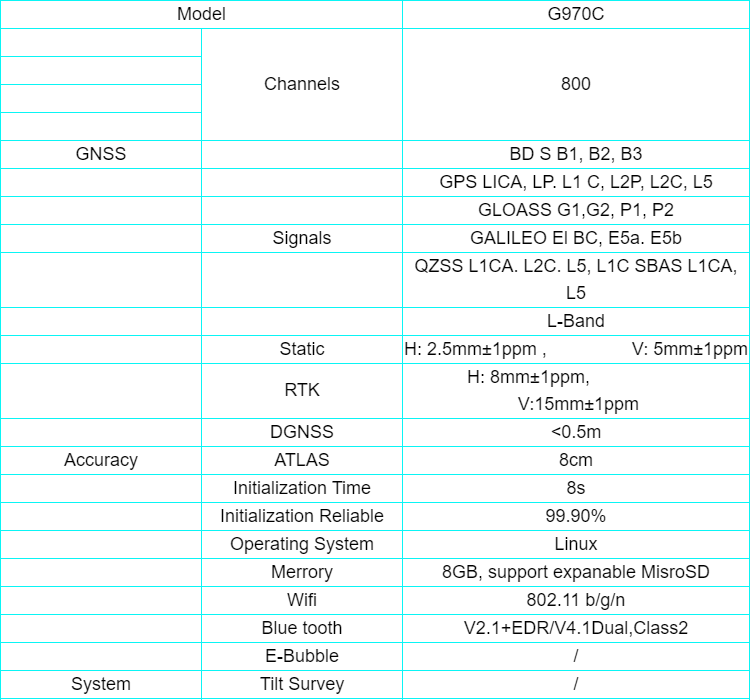

Model |
G970C |
|
Channels |
800 |
|
|
|
GNSS |
|
BD S B1, B2, B3 |
|
|
GPS LICA, LP. L1 C, L2P, L2C, L5 |
|
|
GLOASS G1,G2, P1, P2 |
|
Signals |
GALILEO El BC, E5a. E5b |
|
|
QZSS L1CA. L2C. L5, L1C SBAS L1CA, L5 |
|
|
L-Band |
|
Static |
H: 2.5mm±1ppm , V: 5mm±1ppm |
|
RTK |
H: 8mm±1ppm, V:15mm±1ppm |
|
DGNSS |
<0.5m |
Accuracy |
ATLAS |
8cm |
|
Initialization Time |
8s |
|
Initialization Reliable |
99.90% |
|
Operating System |
Linux |
|
Merrory |
8GB, support expanable MisroSD |
|
Wifi |
802.11 b/g/n |
|
Blue tooth |
V2.1+EDR/V4.1Dual,Class2 |
|
E-Bubble |
/ |
System |
Tilt Survey |
/ |
|
Audio |
support TTS audio broadcast |
|
UHF |
Tx/Rx Internal Radio, 1W/2W adjustable |
Datalink |
Protocol |
support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH |
|
Network |
4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS) |
|
Reference outputs |
RTCM2.3, RTCM3.2, CMR, CMR+, ROX |
|
Interface |
1*TNC Radio Antenna, 1*5Pin(Power & RS232),1*7Pin (USB 81 RS232) |
|
Button |
1 Power Button |
|
Indication Light |
4 Indication Lights |
Physical |
Size |
Φ156mm * H 76mm |
|
Weight |
1.2kg |
|
Battery capacity |
7.2V, 24.5Wh(standard two batteries) |
Power supply |
Life Timer |
Staic Survey: 15 hours, Rover RTK survey: 12h |
|
External power source |
DC 9-18V, with overvoltage protection |
|
Work Temporature |
-30ºC ~ +65ºC |
|
Storage Temporature |
-40ºC ~ +80ºC |
Environment |
waterproof&dustproof |
IP67 |
|
Humidity |
|
