Geomax Zenith 15 Pro Geodetic Equipment Used Surveying Cheap Gnss Gps Receiver RTK

Short Description:


Product Detail

Product Tags

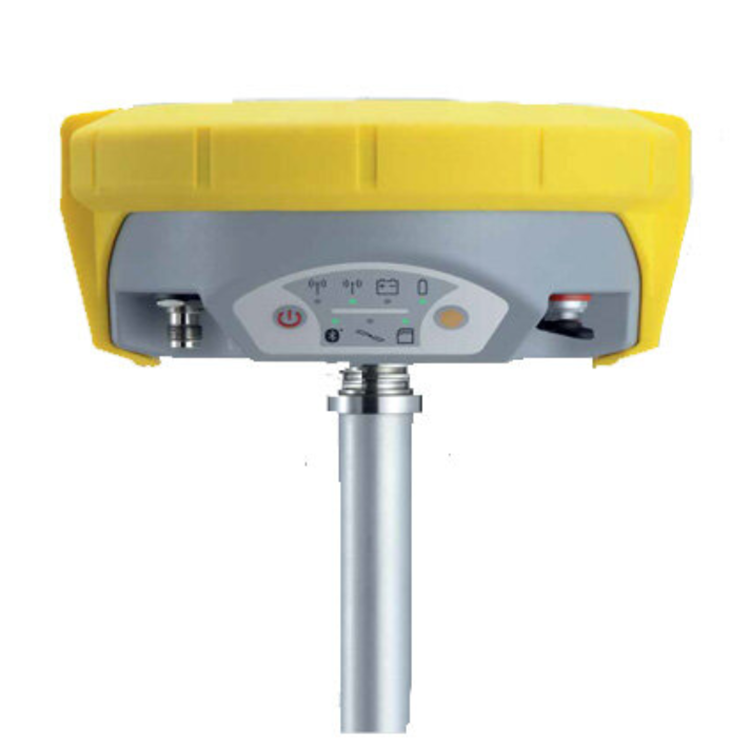

GeoMax Zenith15 GNSS Receiver Features:

COMPACT

  • Integrated GSM antenna
  • Quick swappable SIM & microSD card
  • Complete control with receiver keypad

HIGH PERFORMANCE

  • NovAtel® technology
  • GPS, GLONASS & SBAS
  • GSM/GPRS, UHF radio &

MIX & MATCH

  • Combine with your preferred datalogger and software
  • Open connectivity
  • Complete setup flexibility
SPECIFICATIONS:

Receiver specifications
Q-Lock™ technology Lowest noise and multipath mitigation
Satellites [max. number tracked simultaneously] 60
Channels 120
GPS tracking L1, L2, L2C
GLONASS tracking L1, L2
Galeleo tracking* No
BeiDou tracking No
Positioning rate 5Hz
SBAS EGNOS, WAAS, MSAS, GAGAN
Measurement Accuracy**
Static H/V [mm + ppm] 5 + 0.5 / 10 + 0.5
Static long H/V [mm + ppm] 3 + 0.4 / 3.5 + 0.4
Kinematic H/V [mm + ppm] 10 + 1 / 20 + 1
Interfaces
Keyboard On/Off and function keys
LED status indicators Position, battery, ®, RTK receive, RTK transmit, Storage Card
LED mode indicators Rover, base, static
Data recording 8 GB removable microSD card
GSM/TCP/IP Removable SIM card
Communication
GSM/GPRS module

Quad-Band GSM & Penta-Band ; UMTS 800 /850 /900 /1900 /2100 MHz ;internal antenna

UHF radio module 1000 mW transceiver; 406-480 MHz
® Device class II
Communication port USB, serial & power
Power Supply
External power / Internal battery 10.5 V to 28 V / Removable 2.6 Ah ; 7.4 V
Operating time [static/rover] 7.5 h / 5 h
Physical specifications
Dimensions Height 95 mm, Ø 198 mm
Weight 1.2 kg incl. battery & UHF radio
Operating temp. -40°C to 65°C
Protection class IP68 – withstands dust and immersion in water
Humidity 100%, condensing
Vibration Mechanical stress resistant according ISO 9022-36-05
Shock Withstands 2m topple over onto hard surface
