High precision In Stock FOIF EL302A DIGITAL LEVEL price dumpy level auto level instrument price

Short Description:


Product Detail

Product Tags

Accuracy
Standard deviation of  km double run
Electronic measurement invar staff +/-0.6mm*
standard staff +/-1.0mm*
Optical measurement +/- l.5mm*
Electronic measurement
Time for single measurement ≤2s
Range 2-105m
Measurement modes Singel, average, tracking
Display resolution(m/in selectable)
Height 0.1mm/0.0001ft
Distance 1mm/0.001ft
Telescope
Clear objective aperature 45mm
Magnification 30x
Field of view at 100m 2.3m
Shortest focus distance 1.0m
Automatic compensator
Working range 14′
Setting accuracy +/-0.5″

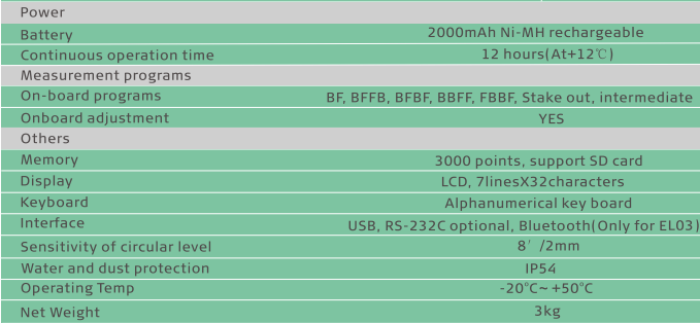

Power
Battery 2000mAh Ni-MH rechargeable
Continuous operating time 12 hours
Measurement programs
On-board programs BF, BFFB, BFBF, BBFF, FBBF,
 Stake out, intermediate
Onboard adjustment Yes
Others
Memory 3000 points, support SD card
Display LCD, 7lines*32characters
Keyboard Alphanumeric keyboard
Interface USB, RS232 optional
Sensitivity of circular level 8′/2mm
Water and dusp protection IP54
Operating temperature    -20°C~50°C
Net weight 3kg
