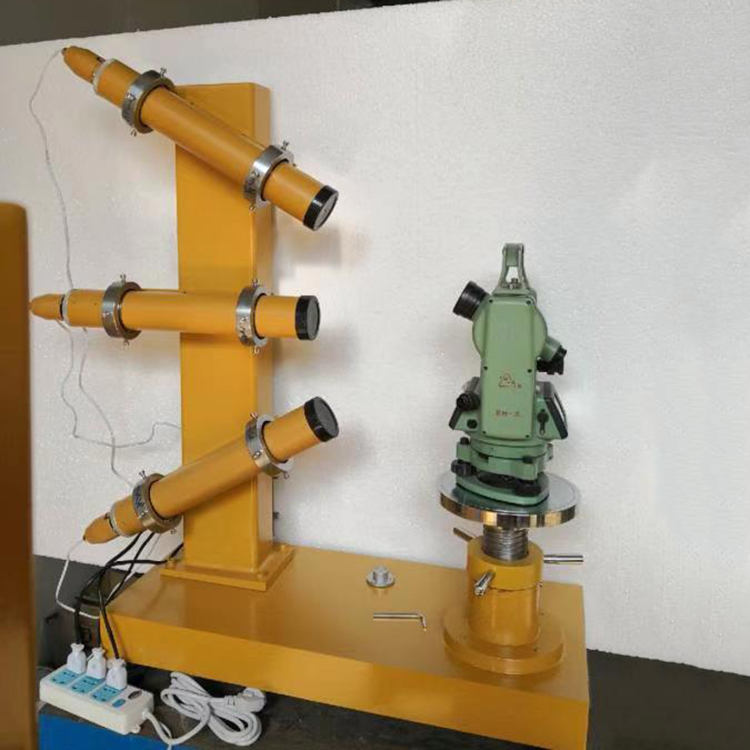

High Quality Survey Instrument Collimator Laser Totoal Station Calibration Stand

Short Description:


Product Detail

Product Tags


1 Magnification: 5.7-7X
2 Aperture: 55mm
3 Resolution: 3”
4 Dimension:168x110x55(mm)
5Total weight:200kg

1.Number of collimator tube: 4pcs

2.Focus: 565mm

3.Aperture: 55mm

4.Focus:550

5.Accuracy(Reticle’s division value): 20″

6.Shortest target: 2m

7.Medium and far target: ∞

8.Micro adjusting range: ≤ 20″

9.Lifting range of the lifting platform: 300mm

10.Max. Loading weight on support column: 40kgs

11.Optical plummet inside the support column

12.Magnification: 5.7~7X

13.Angle of field of view: 10°20′

14.Resolution: 3″

15. Dimension:168x110x55(mm)

16.Total weight: 200kgs

17.Visual range: 15~30cm

18.Foundation’s round level: 8″/2mm

19.Power supply for tube: 3.4~4.2V,2.1W

20.Switch power: 1~10A

21.Lighting: cold light (with adjustable intensity), green or white

Optical Collimator For Laser Totoal Station Calibration Stand Survey Instrument

Calibration Stand


Optical Collimator For Laser Totoal Station Calibration Stand Survey Instrument


Optical Collimator For Laser Totoal Station Calibration Stand Survey Instrument
