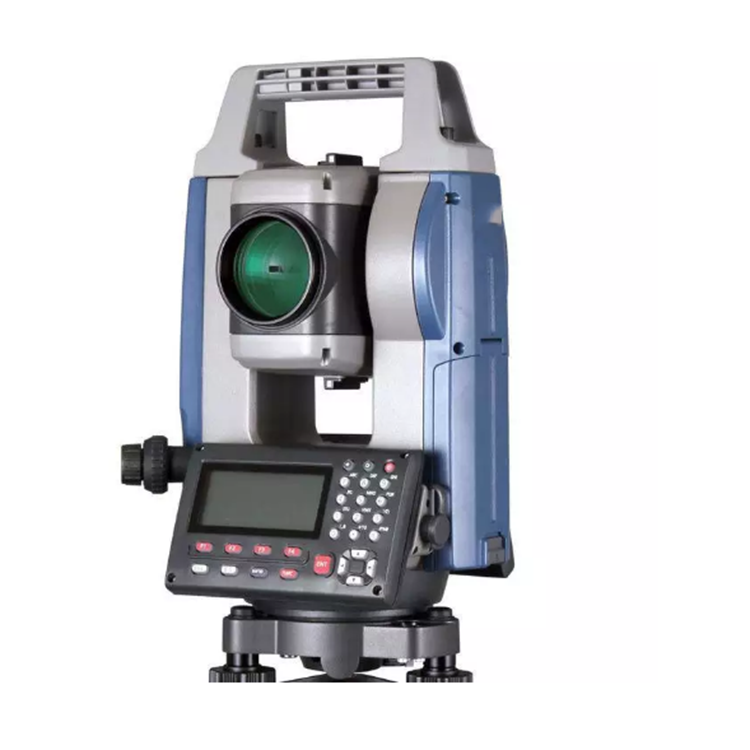

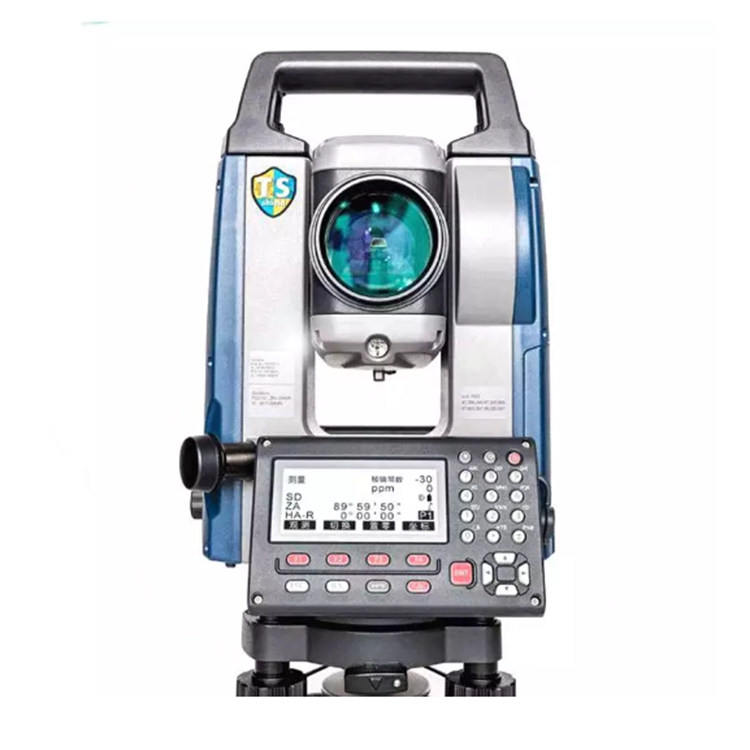

Japan Brand IM102 Survey Machine High Quality Cheap Total Station

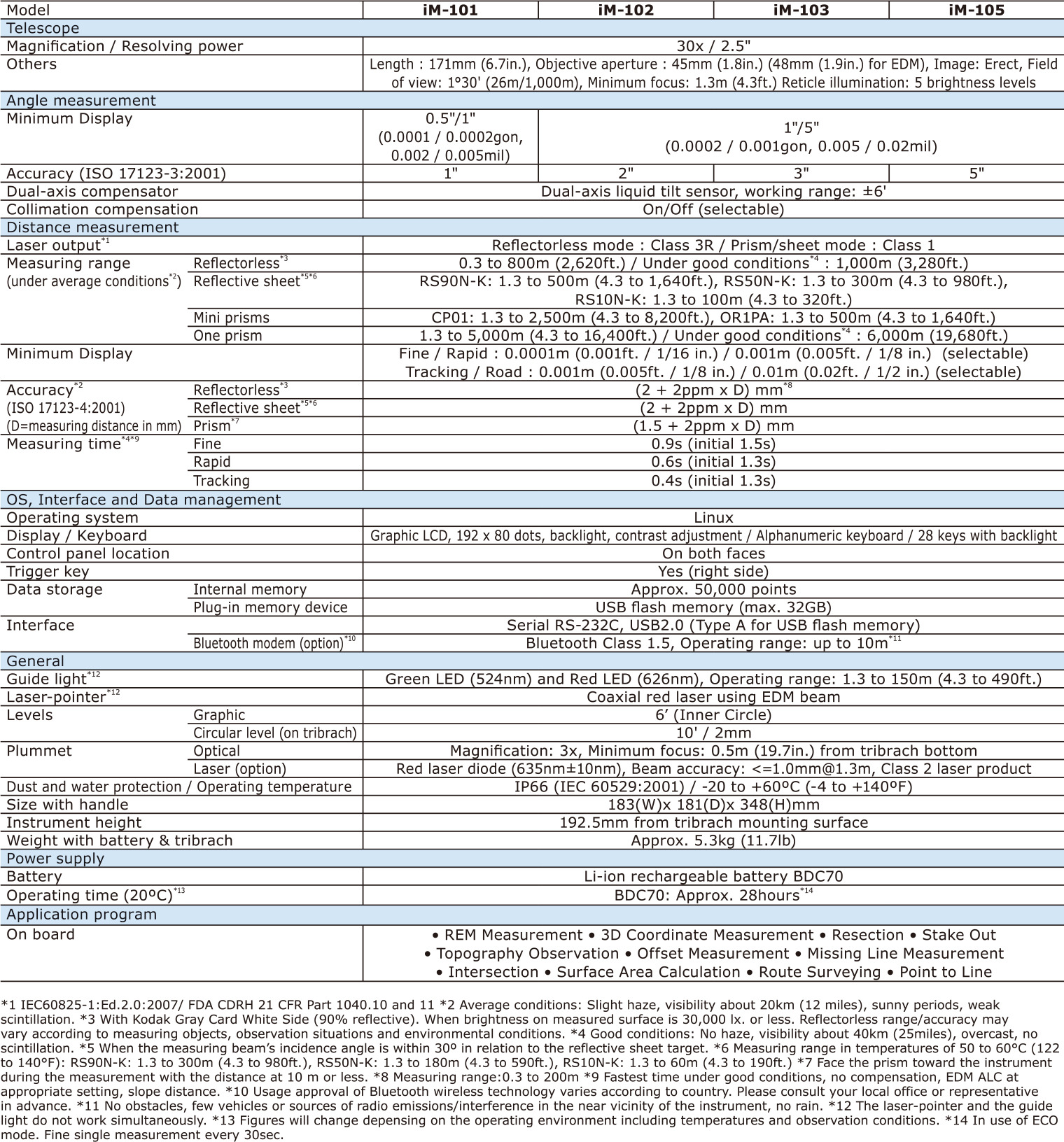

Mode | iM-101 |
Telescope | |
Magnification/Resolving power |
30x / 2.5″ |
Others | Length : 171mm (6.7in.), Objective aperture : 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1°30′ (26m/1,000m), Minimum focus: 1.3m (4.3ft.) Reticle illumination: 5 brightness levels |
Angle measurement | |
Minimum Display (selectable) | 1″/5″ (0.0002 / 0.001gon, 0.005 / 0.02mil) |
Accuracy (ISO 17123-3:2001) | 2″ |
Dual-axis compensator | Dual-axis liquid tilt sensor, working range: ¡À6′ |
Collimation compensation | |
Laser output | Reflector mode: Class |
