OEM/ODM Supplier Base And Rover Rtk - Land surveying instruments with 555 channels gnss receiver Foif N90 – Haodi Detail:

Product Detail:

Items Specification
GNSS Engine GNSS board NovAtel OEM 729
Channel 555
Satellites GPS: L1 C/A, L1C, L2C, L2P, L5
GLONASS: L1 C/A, L2 C/A, L2P, L3, L5
BeiDou: B1, B2, B3
Galileo: E1, E5 AltBOC, E5a, E5b, E6
NavlC (IRNSS): L5
SBAS: L1, L5
QZSS: L1 C/A, L1C, L2C, L5, L6
L-Band: Up to 5 channels
Trimble BD990 optional
Real-Time Accuracy(rms) SBAS Horizon: 60cm(1.97ft); Vertical: 120cm(3.94ft)
Real-Time DGPS position Horizon: 40cm(1.31ft); Vertical: 80cm(2.62ft)
Real-Time Kinematic Position Horizontal: 1cm(0.03ft)+1.0ppm; Vertical: 2.5cm(0.08ft)+1.0ppm
Real-Time Performance Instant-RTK Intialization Typically <10s (Intialization for base lines <20km)
Stop and Go solution 99.9% reliability
RTK Intialization range >40km
Post Processing Accuracy(rms) Static, Rapid Static Horizontal: 2.5mm(0.008ft) +1.0ppm;
Vertical: 5mm(0.016ft)+1.0ppm
Post-processing Kinematic Horizontal: 10mm(0.033ft)+1.0ppm; Vertical: 20mm(0.066ft)+1.0ppm
Solutions Surpad software Main function include: A90 GNSS Support: configuration, monitoring and control
Field Software Suite Volume computation, Background raster image
Network connectivity, Coordinate System Support: predefined grid systems, predefined datums
projections, Geoids, local grid
Map view with colored lines Geodetic Geometry: intersection, azimuth/distance, offsetting, poly-line, curve, area
Road Construction (3D): Survey Utilities: calculator, RW5 file
Viewing: Data import/Export: DXF, SHP, RW5
Data logging Recording Interval 0.1-999 seconds
Physical Flat design
Size 156mm*76mm
Bottom cover Aluminum magnesium alloy
Memory Internal memory 8GB standard; supports extending to 32GB
I/O Interface TNC port connecting built-in radio antenna
5-pin lemo port connecting external power supply and external radio
7-pin lemo port (USB+serial port): connecting PC and handheld
Operating system Linux Based on Linux; Supports Web UI
Voice Multi-language supported
Tilt survey sensor Automatic correct system by 30 degree
Data format Data format RTCM 2.3
RTCM 3.0.RTCM 3.X
CMR, CMR+
NovAtelX/5CMRx
Operation Operation RTK rover/base, post-processing
RTK Network rover VRS, FKP, MAC
Point-to-point GPRS through Real-time Data
Server Software (internal GPRS or external cell phone)
LandXML (FOIF Field Genius support) Total Station support ( FOIF Field Genius)
Import and stake directly from a DXF File (FOIF Field Genius)
Office Software Main functions include: Network post-processing
Integrated transformation and grid system computations
Pre-defined datums along with use-defined capabilities
Survey mission planning
Automatic vector processing
Least-squares network adjustment
Data analysis and quality control tools
Coordinate transformations
Reporting
Exporting
Geoid
Environmental Operating temperature -30℃ to +65℃(-22°F to 149°F)
Storage temperature -40℃ to +80℃(-40°F to 176°F)
Humidity 100% condensing
Waterproof IP67 (IEC60529)
Shock 2m (6.56ft) pole drop
1.2m (3.94ft) free drop
Power 7.2v.2 removable batteries (total up to 6800mAh, supports single battery working)
Optional System Components Communication Module Internal radio: UHF Link (410-470MHz)
1W
External radio R*&*both (5w/35w selectable)
4G LTE module (EC25 series) Fits various networks
Bluetooth 2.1+EDR Class 2
WiFi IEEE 802.11 b/g/n
Antenna Built-in antenna, integrating GNSS, BT/WLAN and network antenna
Controller F58

related pictures

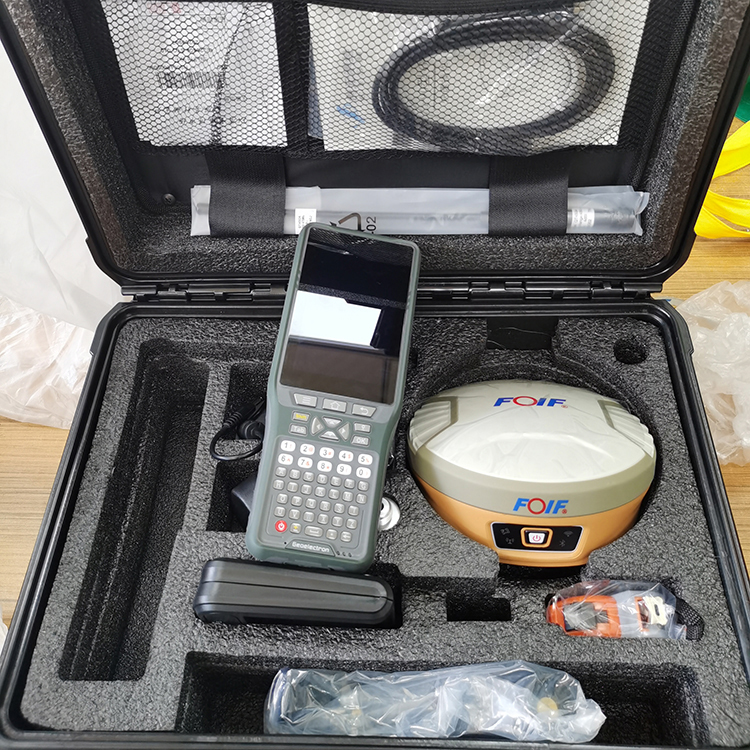

related pictures (4)

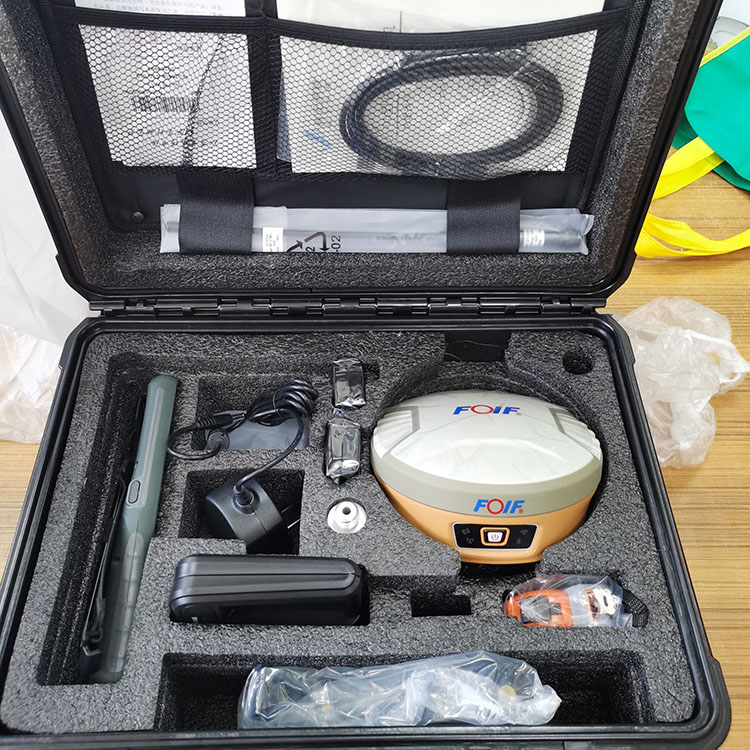

related pictures (3)

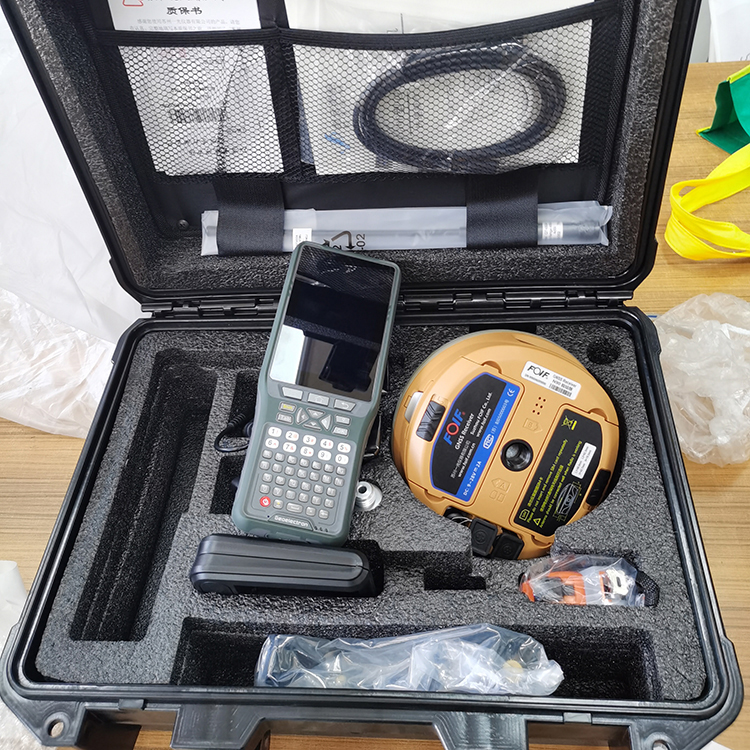

related pictures (1)

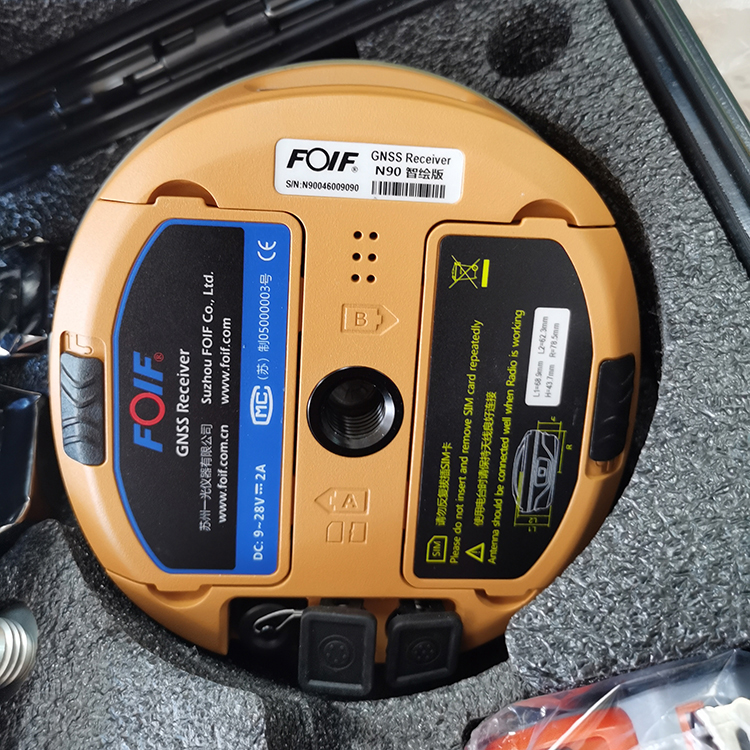

related pictures (5)


Product detail pictures:

OEM/ODM Supplier Base And Rover Rtk - Land surveying instruments with 555 channels gnss receiver Foif N90 – Haodi detail pictures

OEM/ODM Supplier Base And Rover Rtk - Land surveying instruments with 555 channels gnss receiver Foif N90 – Haodi detail pictures
