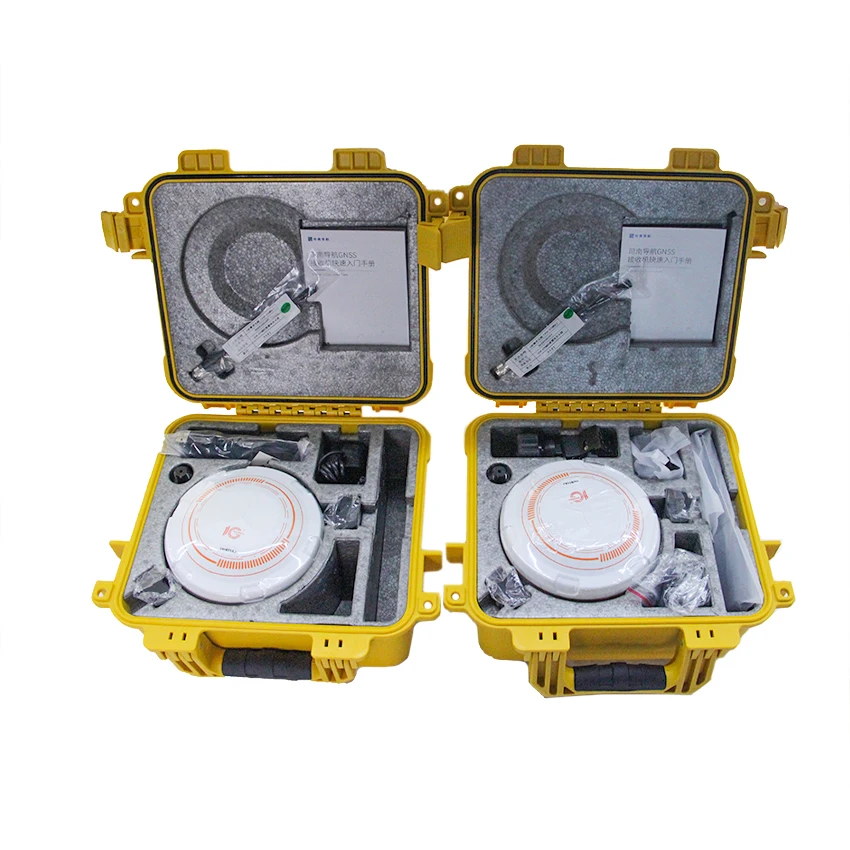

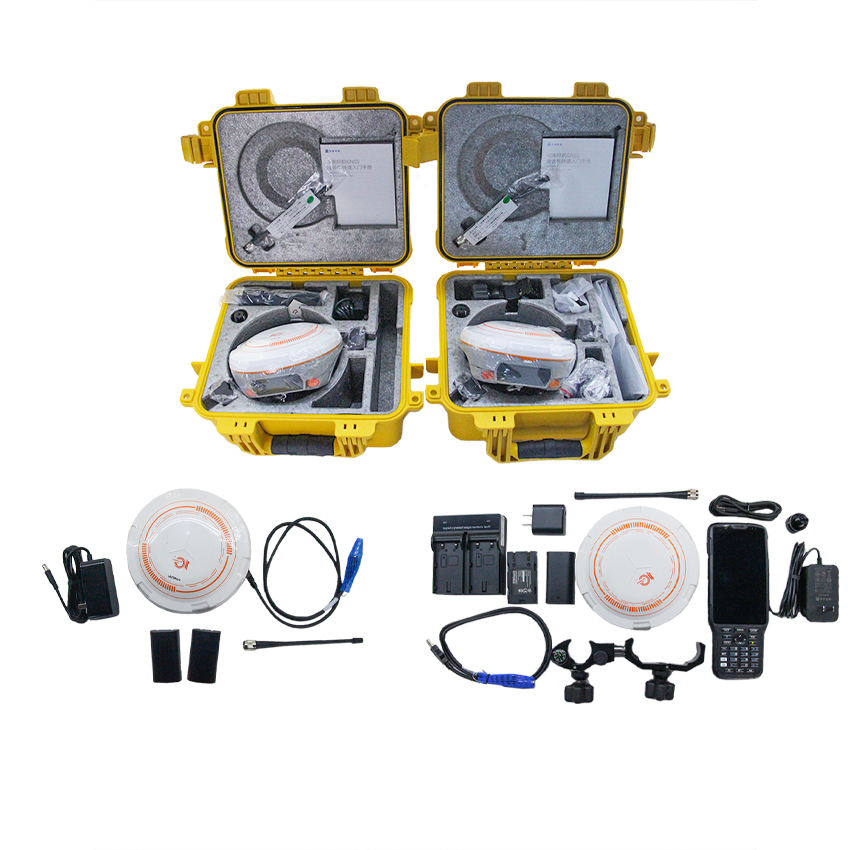

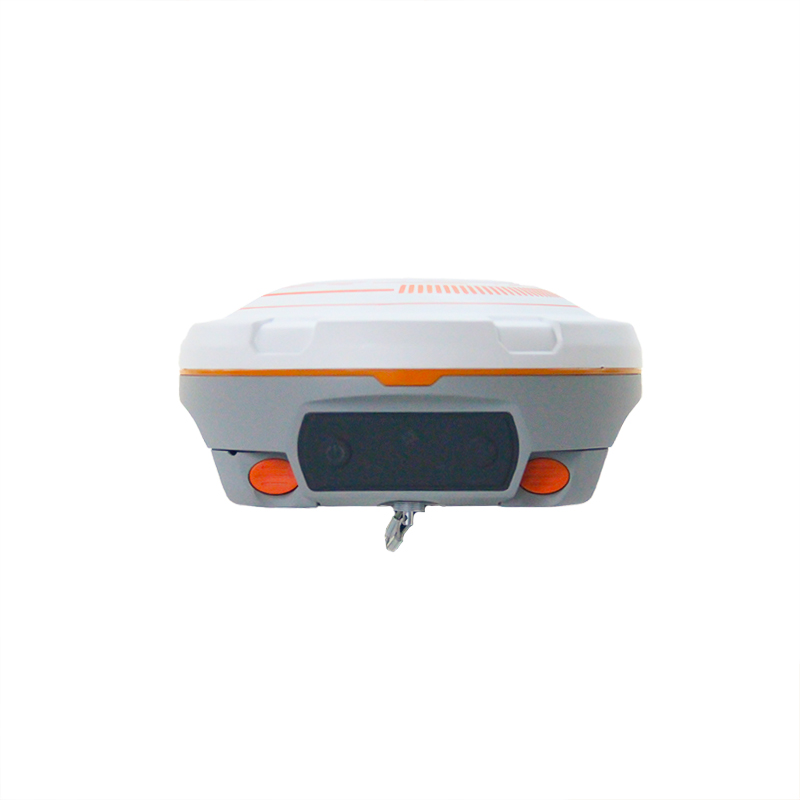

Sino/Comnav N3 Station Land Surveying Gps Gnss Base And Rover Receiver RTK

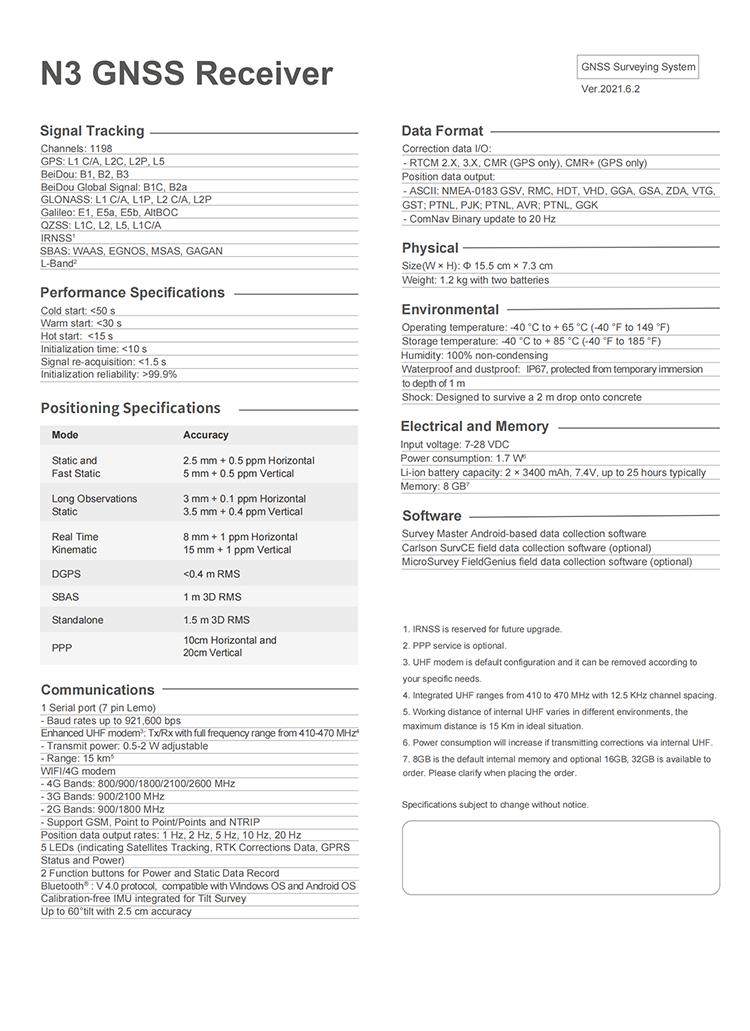

PERFORMANCE SPECIFICATIONS
| POSITIONING PERFORMANCE | |
| High-Precision Static | |
| Horizon: | 2.5 mm + 0.1 ppm RMS |
| Vertical: | 3.5 mm + 0.4 ppm RMS |
| Static and Fast Static | |
| Horizon: | 2.5 mm + 0.5 ppm RMS |
| Vertical: | 5 mm + 0.5 ppm RMS |
| RTK Accuracy | |
| Horizon: | 8mm+1ppm RMS |
| Vertical: | 15mm+1ppm RMS |
| Network RTK | |
| Horizon: | 8mm+0.5ppm RMS |
| Vertical: | 15mm+O.5ppm RMS |
| Initialization time | |
| Typically 2-10s | |
| Initialization reliability | |
| Typically > 99.9% | |
| Internal Battery | |
| Battery | 7.4V 6800mAh lithium-ion rechargeable and removable battery.RTK rover(UHF/Cellular) for 10 hours.Power indicator embedded. |
| Working time | Quick charge within 3.5 hours. |
| Communication | |
| Internal UHF Transceiver Radio | |
| Frequency | 403-473MHz |
| Transmitting power | 1 ~4W Hi-Target Advanced Radio Supports protocols: HI-TARGET, TRIMTALK450S, TRIMMARK III, SATEL-3AS, TRANSEOT |
| Working Range | Typically 3~5km, optimal 5~8km |
| Physical | |
| Dimensions | 158mm x 98mm (6.22inch x 3.86inch) |
| Weight | lighter than 1.3kg (2.65lb) within internal battery |
| Operation temperature | -40°C~+75°C (-40°F~ + 167°F) |
| Storage temperature | -50°C~+85°C (-58°F~ + 185°F) |
| Temperature control | Auto-adjust the working power to maintain the temperature |
| Interface | |
| Blue Tooth 4.0/2.1 + EDR, 2.4 GHz. USB 20 port with OTG function. 1 SMA antenna connector. 1 DC power input(S-pin). 1 SIM card slot Near FieldCommunication(NFC) | |
| I/O Interface | |
| Control Panel | |
| Physical button | 1 |
| Touchscreen | Support glove mode and wet-finger mode |
| Environment | |
| Dustproof&Waterproof | IP67 dustproof, protected from temporary immersion to depth of 1 m (3.28ft) |
| Humidity | 100% condensing |
