UFO U3 High-precision Gnss Rtk High Accuracy Survey Equipments Rtk Gps

Short Description:


Product Detail

Product Tags

UFO U3 High-precision Spectra Gnss Sp High Accuracy Survey Equipmens Rtk Gps

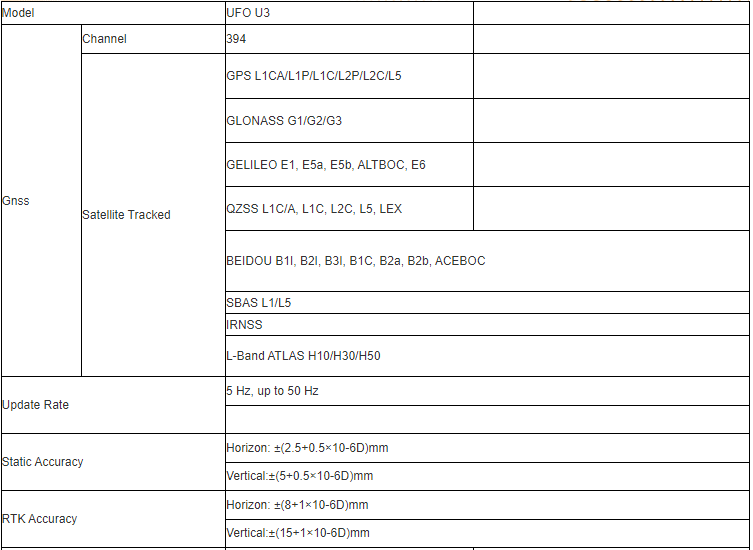

Model UFO U3
Gnss Channel 394
Satellite Tracked GPS L1CA/L1P/L1C/L2P/L2C/L5
GLONASS G1/G2/G3
GELILEO E1, E5a, E5b, ALTBOC, E6
QZSS L1C/A, L1C, L2C, L5, LEX
BEIDOU B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC
SBAS L1/L5
IRNSS
L-Band ATLAS H10/H30/H50
Update Rate 5 Hz, up to 50 Hz
Static Accuracy Horizon: ±(2.5+0.5×10-6D)mm
Vertical:±(5+0.5×10-6D)mm
RTK Accuracy Horizon: ±(8+1×10-6D)mm
Vertical:±(15+1×10-6D)mm
Power Supply Battery Built-in battery, 7.2V 6800mAh
Working time Up to 12 hours
Input Voltage 9~28 V DC external power input
Communication Memory 8GB
Blue Tooth V2.1+EDR / V4.1 Dual Mode, Class2
WIFI 802.11 b/g/n
Internal UHF GEOTALK, GEOMARK
 TrimMark III (19200), TrimTalk1
 HiTarget 9600, HiTarget 19200
 South 9600, South 19200
 PCC-EOT, TrimTalk 450S
 Radio Protocol SATEL
Frequency 410-470MHz
Transmit power 1w
Network Support 4G
Electric Bubble Enable
Physical Dimensions Φ157 mm x 74 mm
Weight 940g
Interface
TNC Internal radio UHF antenna interface
Type-C Direct charge and support external power
supply, USB3.2 directly connected to the
computer, USB mode, etc.
5-pin Interface Serial port and external power supply
SIM card slot NANO SIM
Power Button  Short press, long press, hold,
multiple applications
Power Indicator
Display the battery power of receiver
Strip-type Indicator Display the working status of receiver
Voice TTS voice broadcast
Environment Work Temperature -30 °C to +65 °C (-22°F to 149°F)
Storage Temperature -40 °C to +80°C (-40°F to 176°F)
Dustproof&Waterproof IP67 (Customizable IP68)
Humidity 100% non-condense
