UFO U5 Gnss Differential Receiver Professional Gps Rtk De Doble Frecuencia

Short Description:


Product Detail

Product Tags

UFO U5 Gnss Differential Receiver Professional Gps Rtk De Doble Frecuencia

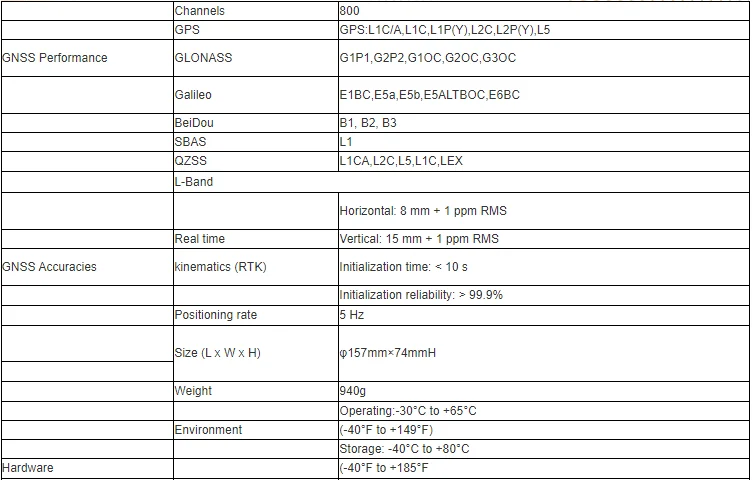

GNSS Performance

Channels
800
GPS
GPS:L1C/A,L1C,L1P(Y),L2C,L2P(Y),L5
GLONASS
G1P1,G2P2,G1OC,G2OC,G3OC
Galileo
E1BC,E5a,E5b,E5ALTBOC,E6BC
BeiDou
B1, B2, B3
SBAS
L1
QZSS
L1CA,L2C,L5,L1C,LEX
L-Band

GNSS Accuracies

Real time
kinematics (RTK)
Horizontal: 8 mm + 1 ppm RMS
Vertical: 15 mm + 1 ppm RMS
Initialization time: < 10 s
Initialization reliability: > 99.9%
Positioning rate
5 Hz

Hardware

Size (L x W x H)
φ157mm×74mmH
Weight
940g
Environment
Operating:-30°C to +65°C
(-40°F to +149°F)
Storage: -40°C to +80°C
(-40°F to +185°F
Ingress protection
IP67 waterproof and dustproof, protected
from temporary mmersion to depth 1m
Tilt sensor
Calibration-free IMU for pole -tilt
compensation.Immune to magnetic
disturbances.
Front panel
4 status indicators and power indicator

Communication

Wi-Fi
802.11 b/g/n, access point mode
V2.1+EDR/V4.1 dual mode, Class2
Others
NFC

UHFradio

Transmitting power: 1w, frequency: 410-470MHz

Radio protocol: SATEL, PCC-EOT, TrimTalk450S, 9600,19200, Hi-Target9600, Hi-Target19200, TrimMarkIII (19200),
TrimMarkI, GEOTALK, GEOMARK

Data storage
8 GBinternal memory

Electrical

Input voltage
DC 9V-28V
Li-ion battery capacity
Built-in non-removable battery
6800 mAh, 7.2V
Operating time on
internal battery
RTK:Rover 10.5h

Hand thinness parameters

model
C5
network
4G All Netcom (Mobile Unicom Telecom 2G/3G/4G)
operating system
Google Android 9.0
CPU
64-bit, 8-core 2.0GHz
LCD panel
5.5-inch AMOLED self-illuminating display
Data line interface
USB-TypeC
battery
3.8V 5200mAh
Three Preventions
IP67
Stylus
yes
Size (L x W x H)
225x78x18.5mm

UFO U5 Gnss Differential Receiver Professional Gps Rtk De Doble FrecuenciaUFO U5 Gnss Differential Receiver Professional Gps Rtk De Doble FrecuenciaUFO U5 Gnss Differential Receiver Professional Gps Rtk De Doble FrecuenciaUFO U5 Gnss Differential Receiver Professional Gps Rtk De Doble FrecuenciaUFO U5 Gnss Differential Receiver Professional Gps Rtk De Doble Frecuencia
